RTM Module / S30810-Q2312-X

Name: RTM Module / S30810-Q2312-X
Brand: HEXA COMMUNICATIONS PRIVATE LIMITED
Price: 48000.0 INR
Availability: InStock

Price 32700.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

RTM Module / S30810-Q2312-X Specification

Mounting Type
Rack mount, chassis mount

Operating Temperature
0C to 50C

Features
Hot-swappable, high reliability, seamless connectivity, modular design

Range
Supports long distance PBX channel extension

Frequency
Standard telephony frequency range

Size
Standard RTM form factor

Connectivity Type
RJ45, terminal block

Battery Backup
No onboard battery; supports external UPS

Interface Type
Digital trunk, expansion interface

Model
S30810-Q2312-X

Power Supply
48V DC, 12W

Shelf Life
10 years (in proper storage conditions)

Product Type
Gigaset DA710 Corded Phone

Application
Industrial

Dimension (L*W*H)
200 mm x 120 mm x 25 mm

Material
Metal

Weight
380 g

Capacity
Supports up to 16 channels

Coverage Area
Depends on PBX configuration

Color
Green (PCB) with silver and black components

Part Number
S30810-Q2312-X

Compliance Standards
EN 60950, IEC 60065

RoHS Status
Compliant

Humidity Range
10% to 90% non-condensing

Compatibility
Siemens HiPath series and OpenScape platforms

Input Impedance
600 Ohm

RTM Module / S30810-Q2312-X Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA)

Supply Ability
10 Pieces Per Month

Delivery Time
10 Days

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About RTM Module / S30810-Q2312-X

RTM MODULE FOR SIEMENS HIPATH 4000 SYSTEMS30810-Q2312-X

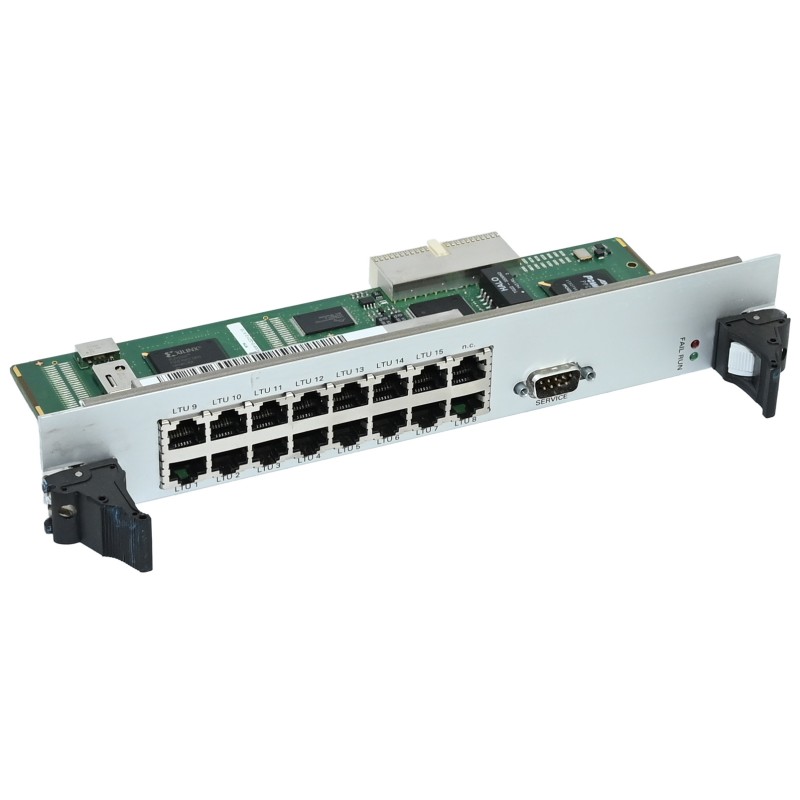

The RTM (Rear Transition Module) board is implemented in the Compact PCI architecture in HiPath 4000 Siemens Communication Server and forms the interface between the central processor board (DSCXL) and the peripheral LTU shelf. This board offers the same functions as its predecessor DSCX as well as the following improvements.

It is integrated in the CompactPCI system
It supports up to fifteen LTU shelves
It replaces the existing LTU cables with standard CAT5, 8-pin, shielded cables, (RJ45)
It provides a LAN-based interface to the DSCXL over the backplane.

The RTM board consists of the following interfaces:

Compact PCI backplane with:
Power supply
System clocks
Slot addresses
Control signals between partner boards
LAN 10/100Base-T (direct connection over the backplane to the DSCXL board)
LTU 15 x RJ45 each with 32 Mbps (each of which has 1x HDLC channel with 2 Mbps and 4x PCM64s (256 B channels per LTU, max. 3840 B channels)
V.24 9-pin SUB-D connector (service connector)
Displays (LED)

The RTM board receives +3.3 V from the systems backplane. The power supply voltages required for the various circuits on the RTM board are generated by the DC/DC voltage converter.

A Hot Swap Controller monitors the local voltage levels and disables the board:

When 2.5 A power consumption exceeds 20us
Immediately when 7.5 A is reached
In the case of critical voltage underflow; once disabled, the board automatically attempts to perform a reset after approximately 1.5 s.
When the board is plugged in and unplugged.

The board can plugged in and unplugged during live operation

Additional Information:

Delivery Time: Within seven working days
Packaging Details: Boxed

Seamless Integration with Siemens Systems

The RTM Module S30810-Q2312-X is specifically designed for compatibility with Siemens HiPath and OpenScape platforms. Integration is straightforward, facilitating effortless expansion or upgrades within existing telephony environments. The modular configuration and hot-swap capability reduce downtime and make it ideal for mission-critical applications.

Reliable Performance in Industrial Applications

Engineered for industrial usage, this module features a robust metal construction with a green PCB. Its wide operational humidity and temperature ranges ensure stable performance under varying environmental conditions. The RTM Module supports rack and chassis mounting, providing flexibility for different installation requirements and infrastructure setups.

Modular, Expandable Design

The S30810-Q2312-X supports up to 16 channels and can extend PBX connectivity over long distances through digital trunk and expansion interfaces. The standard RTM form factor and a variety of connectivity options, including RJ45 and terminal block, ensure adaptability and compatibility with a broad range of telephony systems.

FAQ's of RTM Module / S30810-Q2312-X:

Q: How is the RTM Module S30810-Q2312-X installed in a telephony system?

A: The module supports both rack mount and chassis mount options, making installation flexible and straightforward. It is hot-swappable, so you can insert or replace the unit without powering down the entire system, ensuring minimal service disruption.

Q: What types of platforms is the RTM Module compatible with?

A: This module is fully compatible with the Siemens HiPath series and OpenScape telephony platforms, ensuring seamless integration and interoperability within these systems.

Q: When should I consider upgrading or adding the RTM Module S30810-Q2312-X to my PBX configuration?

A: Upgrade or add this module when you need to expand your PBX system, increase channel capacity (up to 16 channels per module), or extend connectivity to remote telephony endpoints. It's ideal for growing industrial or enterprise communication needs.

Q: Where can the RTM Module S30810-Q2312-X be used?

A: Designed for industrial environments, the module can operate in locations requiring reliable telephony extension within the specified temperature and humidity ranges. Its robust design suits various sectors, including offices, factories, and server rooms supporting Siemens PBX infrastructure.

Q: What process should I follow to ensure proper usage and compliance?

A: Ensure the module is installed according to Siemens guidelines, with suitable rack or chassis mounting, supplied with 48V DC power, and kept within operational temperature and humidity limits. It meets EN 60950, IEC 60065 standards, and is RoHS compliant for safe operation.

Q: How does the RTM Module benefit my telephony infrastructure?

A: It provides high reliability, modularity, and operational flexibility. With hot-swapping, long-distance channel support, and seamless connectivity, it improves system scalability and uptime, thereby supporting critical business communications.

Q: Does the RTM Module S30810-Q2312-X require an onboard battery for backup?

A: No, the module does not have an onboard battery. For power backup, it supports integration with external uninterruptible power supplies (UPS) to maintain continuous operation during power interruptions.
