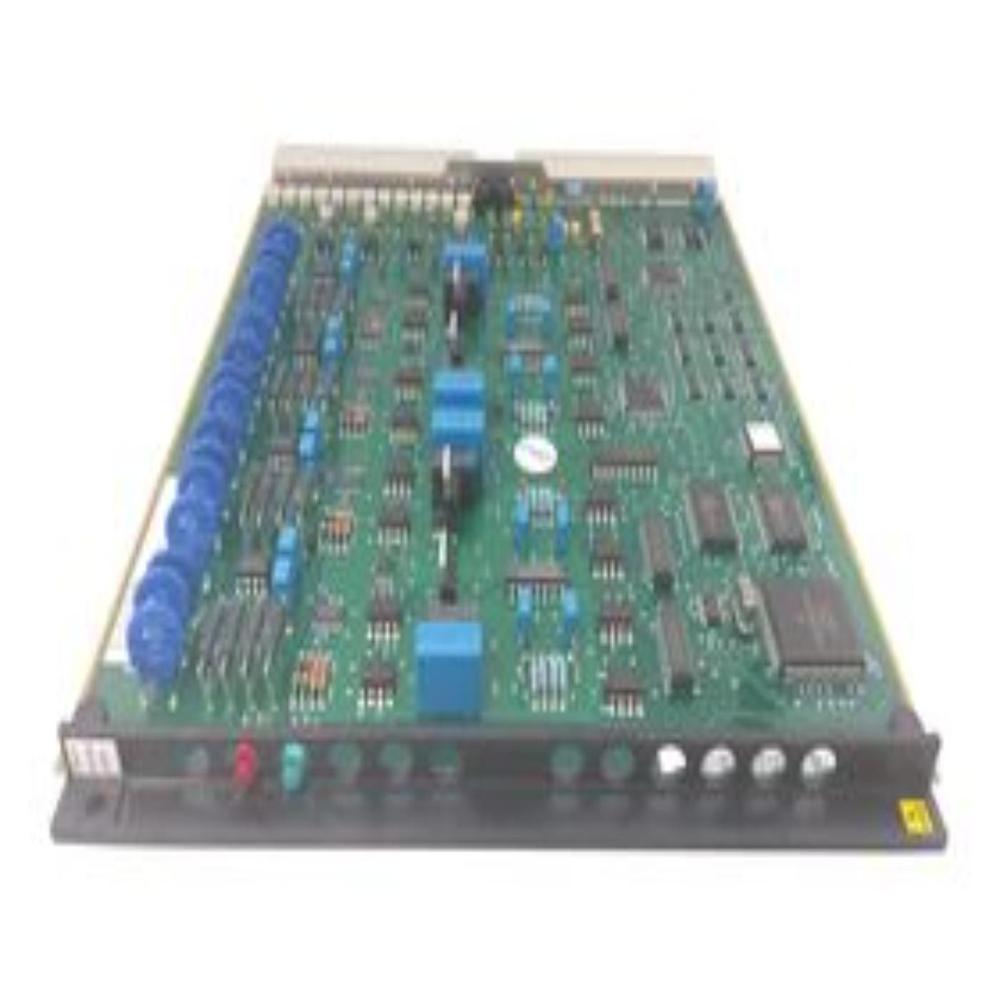

Send InquiryTMEW2 (S30810-Q2292-X100)
Price 37000.0 INR/ Piece
MOQ : 5 Pieces
TMEW2 (S30810-Q2292-X100) Specification
- Model
- TMEW2 (S30810-Q2292-X100)
- Range
- Short to medium-distance dedicated private tie-lines
- Interface Type
- Analog E&M (Ear & Mouth) 2-wire or 4-wire signaling interface
- Size
- Single-slot peripheral card width
- Connectivity Type
- Wired Analog
- Features
- Dedicated configuration jumpers for E&M signaling Type I, II, or V
- Power Supply
- Powered by the system cabinet (+5V DC / -48V DC internal rails)
- Mounting Type
- Plug-in card backplane insertion
- Usage & Applications
- Analog trunk extension and networking tie-lines for enterprise PBX systems
- Product Type
- Telecom PBX Expansion Circuit Board
- Application
- Connects a phone system to private lines, paging PA hardware, or two-way radio setups
- Dimension (L*W*H)
- 270 mm 25 mm 230 mm Millimeter (mm)
- Material
- Multi-layered glass fiber PCB coated with protective green epoxy resin
TMEW2 (S30810-Q2292-X100) Trade Information
- Minimum Order Quantity
- 5 Pieces
- Delivery Time
- 7 Days
About TMEW2 (S30810-Q2292-X100)
- Function: Connects the phone system to private tie-lines, paging systems, two-way radios, or legacy military networks.
- Protocol: Uses E&M (Ear & Mouth) signaling across 2-wire or 4-wire circuits.
- Capacity: Provides 4 independent channels per board.
- Alternative Part Number: L30251-U600-A96.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in EPABX Spare Parts Category
SLC 24 (Q2193-X200)
Price 40000.0 INR / Piece
Minimum Order Quantity : 5 Pieces
Features : 24 \(U_{P0/E}\) digital signaling ports (16 Master / 8 Extension)
Model : S30810Q2193X200
Application : Designed for legacy enterprise PBX switching nodes (Siemens HiPath 3000/4000, Hicom 300E, OpenScape 4000)
Range : Operational connection length spans up to 2.0 km to base nodes
STMD 2 (Q2163-X100)
Price 23800.0 INR / Piece
Minimum Order Quantity : 5 Pieces
Features : Equipped with 8 multiuse S interfaces, supporting 2 Bchannels (64 kbit/s) and 1 Dchannel (16 kbit/s) per port
Model : STMD 2 / Part Number: S30810Q2163X100.
Application : Natively used in Siemens HiPath 4000, Hicom 300E (V3.0+), and Hicom 300H PBX systems
Range : Standard subscriber local loop line range
CMA Module For HiPath 3550
Price 18000.0 INR / Piece
Minimum Order Quantity : 5 Pieces
Features : Embedded backward compatibility to completely replace smaller CMS (Clock Module Small) components.
Model : S30807Q6931X
Application : Corporate PBX infrastructure scaling and multiline wireless integration.
Range : Dependant on the physical placement and coverage radius of connected external radio base stations (like BS4 or BS5)
STMI 2 Q2316-X10
Price 67800.0 INR / Piece
Minimum Order Quantity : 10 Pieces
Features : Includes preinstalled S30807 extension daughterboard module
Model : S30810Q2316X10
Range : System backplane bound / IP network routing limitless
