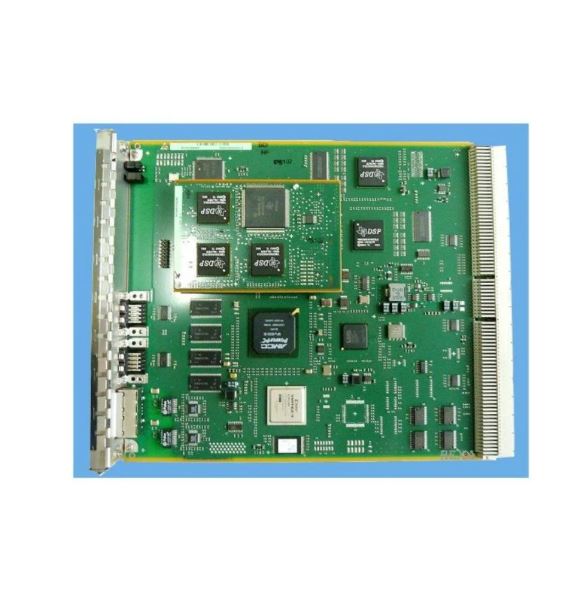

Siemens NCUI4 Module (S30810-Q2324-X10)

Name: Siemens NCUI4 Module (S30810-Q2324-X10)
Brand: HEXA COMMUNICATIONS PRIVATE LIMITED
Price: 120000.0 INR
Availability: InStock

Price 120000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Siemens NCUI4 Module (S30810-Q2324-X10) Specification

Mounting Type
Rack/Slot mounting in Siemens PBX/communication systems chassis

Operating Temperature
0°C to +45°C (32°F to 113°F)

Battery Backup
No

Features
NCUI4 Universal Interface, supports multiple circuit connections, hot-swappable, robust error monitoring

Model
S30810-Q2324-X10

Size
Standard module size

Shelf Life
Not applicable / Long-term industrial usage

Interface Type
Universal Interface (NCUI4)

Range
Compliant with Siemens communication system compatibility

Connectivity Type
Backplane and modular connectivity via Siemens switching systems

Power Supply
Supplied via PBX backplane (typically 5V/12V DC)

Product Type
NCUI4 Communication Module

Application
Industrial telecommunication integration, PBX and switching equipment

Dimension (L*W*H)
Approx. 210 mm x 20 mm x 130 mm

Material
High-quality PCB and electronic components

Weight
Approx. 400 grams

Capacity
Supports up to 4 Universal Circuits (per module)

Compliance
RoHS, Siemens internal quality standards

Hot Swap Capability
Yes

Packaging Type
Antistatic sealed packing

Input/Output Ports
Modular connectors on PCB edge

Redundancy Support
System dependent

Used In
HiPath, Hicom, or similar Siemens communication systems

Module Type
NCUI4 (Network Circuit Universal Interface 4-channel)

Siemens NCUI4 Module (S30810-Q2324-X10) Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
15 Units Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About Siemens NCUI4 Module (S30810-Q2324-X10)

Siemens NCUI4 Module (S30810-Q2324-X10)
Part Number: S30810-Q2324-X10
For HiPath 4000

Gateway unit for a local system connected to a distributed PBX system

Controls all peripheral boards in the local system

Provides access to the 10/100 Base-T Ethernet network

Communicates with the common control system unit over the Ethernet network

Provides:

An interface for up to 16 peripheral boards in the LTU shelf

An interface to support a 19" system

Reliable Universal Interface for Siemens Networks

The NCUI4 Module delivers versatile connectivity for Siemens HiPath, Hicom, and similar PBX systems, supporting up to four universal circuits per card. Its universal interface ensures compatibility across a broad spectrum of Siemens industrial and telecommunication solutions, streamlining network integration.

Hot Swap and Industrial-Grade Construction

Featuring hot swap capability, the NCUI4 can be replaced or maintained without interrupting ongoing operations-ideal for mission-critical environments. Constructed using high-quality PCB materials and electronic components, the module is built to withstand industrial conditions, providing longevity and minimal maintenance.

Effortless Installation and Integration

With modular connectors and standard rack/slot mounting design, installation in Siemens switching system chassis is straightforward. The module draws power directly from the PBX backplane, simplifying setup and reducing the need for additional cabling or power sources.

FAQ's of Siemens NCUI4 Module (S30810-Q2324-X10):

Q: How is the Siemens NCUI4 Module installed in a communication system?

A: The NCUI4 Module is installed by inserting it into the appropriate rack or slot within Siemens HiPath, Hicom, or compatible PBX systems. Modular connectors at the PCB edge provide seamless backplane and modular connectivity. The process is straightforward and designed for efficient integration.

Q: What are the main applications of the NCUI4 Module?

A: This module is primarily used for industrial telecommunication integration, PBX, and switching equipment. It provides a universal interface for connecting up to four independent circuits, making it suitable for scalable and flexible communication infrastructure in business or industrial settings.

Q: When should hot swap capability be utilized?

A: Hot swap capability should be used whenever maintenance, replacement, or upgrades are required while minimizing system downtime. It allows the module to be exchanged or serviced without shutting down the overall communication system, which is crucial in continuous operation environments.

Q: Where is the NCUI4 Module typically deployed?

A: The module is typically deployed within Siemens HiPath, Hicom, or similar communication system chassis in industrial, enterprise, or service provider settings. It is especially valuable where reliable and adaptable telecommunication infrastructure is necessary.

Q: What benefits does the NCUI4 Module offer for industrial telecommunication networks?

A: The NCUI4 offers high reliability, hot swap capability, robust error monitoring, and compliance with Siemens industrial standards. These features ensure stable, efficient, and maintainable network operations, reducing downtime and supporting long-term telecommunication needs.

Q: How does the module support system redundancy?

A: Redundancy support is system dependent; however, when integrated into Siemens PBX or switching systems that support redundancy, the NCUI4 Module can contribute to redundant configurations, enhancing reliability and fault tolerance.
